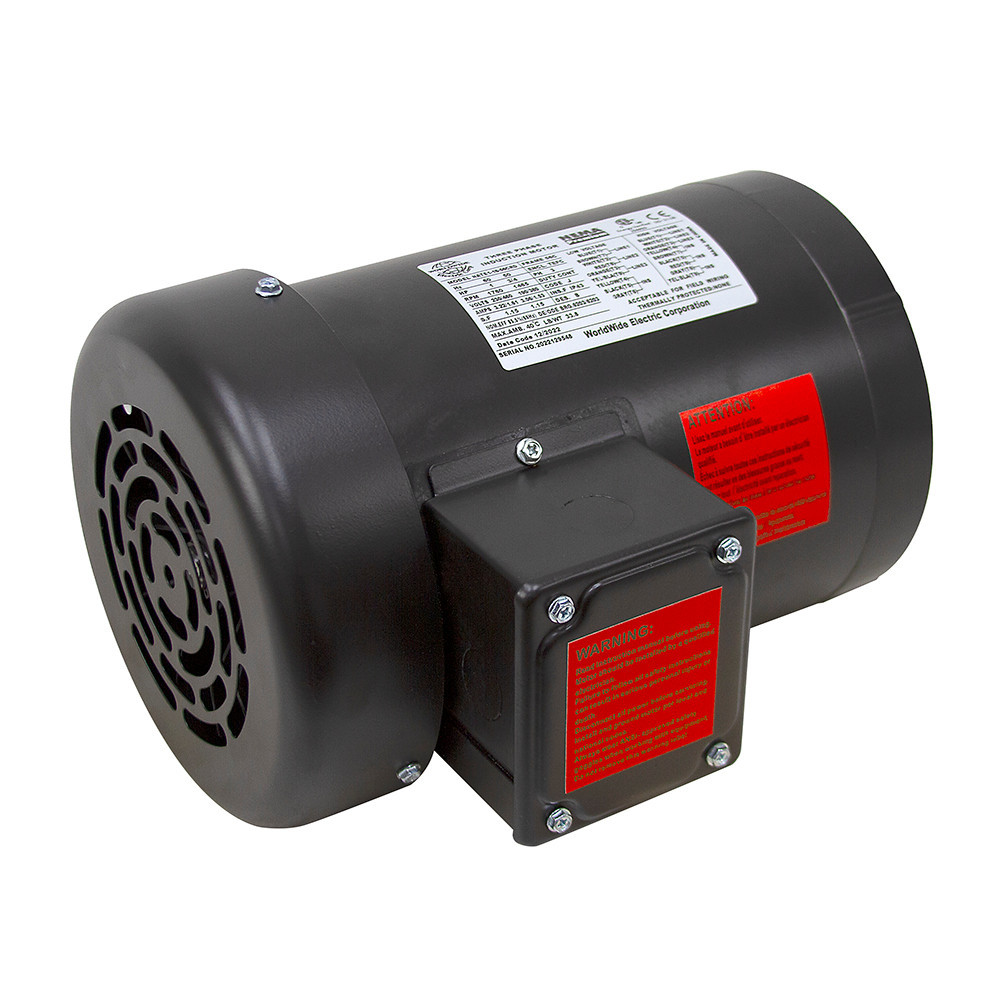

1 HP 1760 RPM 3PH 230/460 VAC FACE MOUNT MOTOR
Brand new, WORLDWIDE NATE1-18-56CRD, general purpose 3-phase motor for use in blowers, pumps, conveyors, and many other diverse applications. Totally Enclosed Fan Cooled (TEFC) enclosures.

SPECIFICATIONS

Power 1 HP
Voltage 230/460 AC
Phase 3
Frequency 60 Hz
Amperage 3.22/1.61 Amps
Speed 1760 RPM
Rotation Reversible
Service Factor 1.15
Bearings Ball
Thermal Overload Protection None
Enclosure TEFC
Duty Continuous
Frame 56C
Face Mount Four 3/8"-16 threaded holes on 5-7/8" B.C., 4-1/2" pilot
Shaft 5/8" dia. x 1-7/8" overall length w/ 3/16" wide x 1-3/4" long keyway
Size 11-1/2" x 8-3/4" x 7-1/4"
Shpg. 40 lbs.
